PJ2T Station Overview

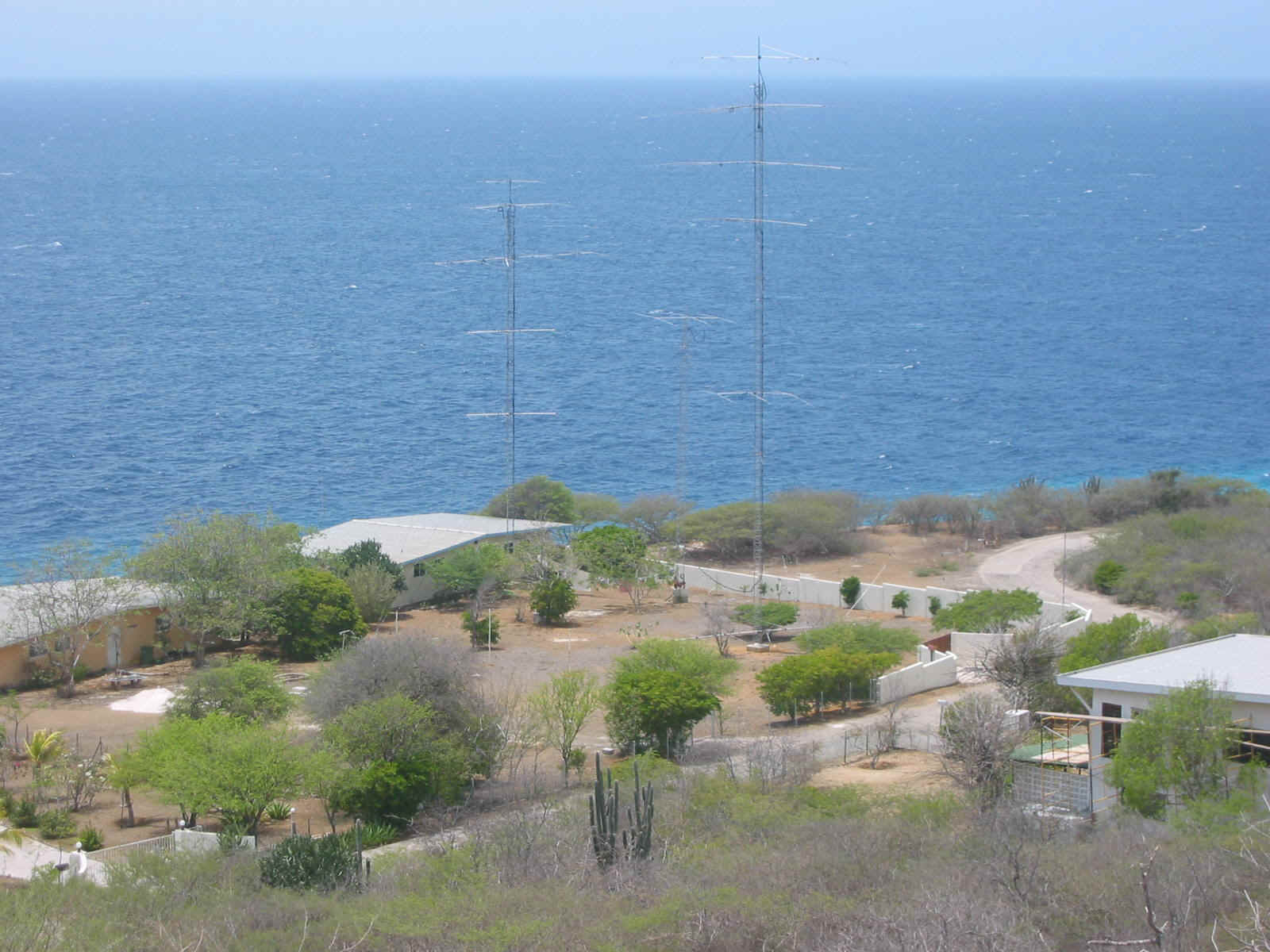

PJ2T is located on a half acre lot immediately adjacent to the Caribbean sea on the south coast of Curacao. There are three towers and numerous wire antennas and four full KW stations inside. Computers are Pentium-class with all flat screen monitors and are networked both with an Ethernet network. WriteLog is our standard logging program. The radios are a mix of FT-1000s (5) and vintage Kenwood and Icom. Internet connectivity is via dialup to a local ISP. All towers are guyed with Phillystran and nearly all feedlines are Heliax. The house is simple but comfortable, with two air conditioned bedrooms, four beds, two full baths, and a large (non-air-conditioned) common room.


(Click on photo for larger image.)


Towers

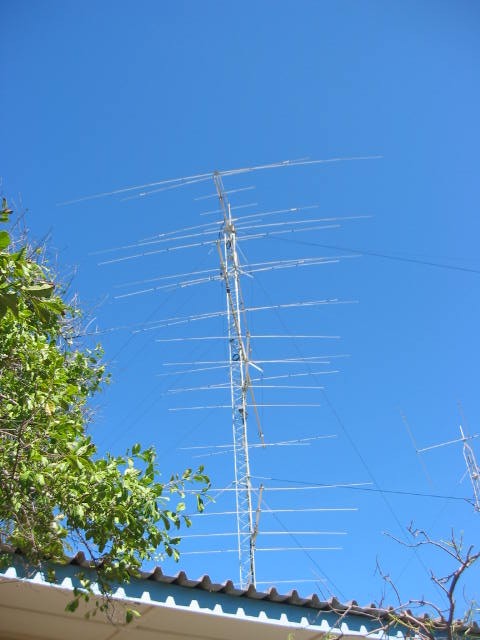

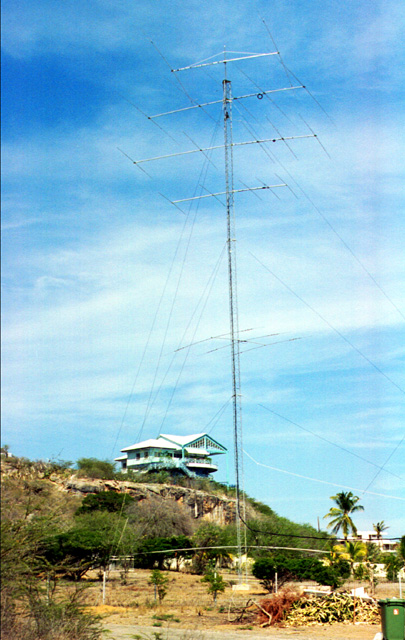

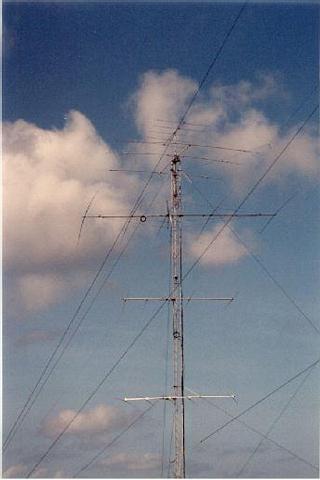

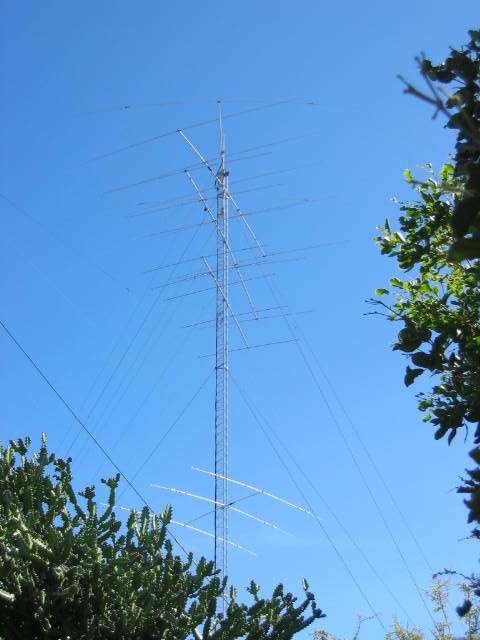

The design philosophy was to build one tower for Europe, one for US/JA, and a third for WARC bands. The towers are situated to minimize interference with each other, and to minimize the number of antennas that would be rotatable, because the year-round high seaside winds are very hard on rotators. The Europe tower is 100 feet of Rohn 55, and is the rightmost tower in the photo above. The US/JA tower, at the left, consists of 80 feet of Rohn 45, and the WARC tower is in the center.


antennas+blue house-sm.jpg (139244 bytes)

US/JA Tower Europe Tower



Antennas

Items in red are complete, blue still pending.

Support Band Antenna Height Rotation
Europe Tower (100 ft) 20 5 el yagi, 34 ft boom 95 ft Fixed Eur
Europe Tower (100 ft) 40 2 el Cush Craft yagi 107 ft Rotatable on mast (T-2X)
Europe Tower (100 ft) 15 5 el yagi, 38 ft boom 85 ft Fixed Eur
Europe Tower (100 ft) 10 5 el yagi, 24 ft boom 75 ft Fixed Eur
Europe Tower (100 ft) 10, 15, 20 3 el Cush-Craft A-3S 45 ft Fixed SA and US long path
US/JA Tower (80 ft) 6 Cush Craft 5 el yagi 86 ft Rotatable on mast (Ham IV)
US/JA Tower (80 ft) 20/15/10 Mosley CL-33 82 ft Rotatable on mast (Ham IV)
US/JA Tower (80 ft) 20 5 el yagi 70 ft Fixed US
US/JA Tower (80 ft) 15 5 el yagi  60 ft Fixed US
US/JA Tower (80 ft) 10 5 el Cush Craft XM-10 stack 54/36 ft Fixed US
Mult Tower (54 ft) 17/12 A-3WS yagi 54 Rotatable on mast (Ham IV)
Mult Tower (54 ft) 30 Inv vee 50 Omni
On 100 foot tower 80 N8VW three element wire loop 80 Fixed Eur
On 80 foot tower 75 Inv vee 75 Omni
Ground Mounted 80/40 HF-2V vertical Ground Omni
Ground Mounted 160 Inverted vee 100 Omni
Ground Mounted 160 650 Beverage - US 6 Fixed US
Ground Mounted 160 1000 ft Beverage - Eur 6 Fixed Eur



Stations

Station # 1 (Primary Run)

FT-1000, Alpha 78, Pentium 450 (on Ethernet) and flat screen monitor, MODEM connected phone line, Autek WM 1 SWR meter, Top Ten devices antenna switching, WX0B stack controls for 10, 15, 20, complete set of W3NQN bandpass filters (automatically switched), Bencher paddle, Heil boomset, Bencher YA-1 low pass filter, Heil foot switch, LPT1 serial keying adapter, rotor controls for 40 yagi, CL-33 monobander, WARC yagi, K9AY pushbutton selector for RX antennas. Both Beverages are available as well as two optional flags.

On 20, 15 and 10 the operator can select any combination of the US/JA yagis, the Europe yagis, or both.

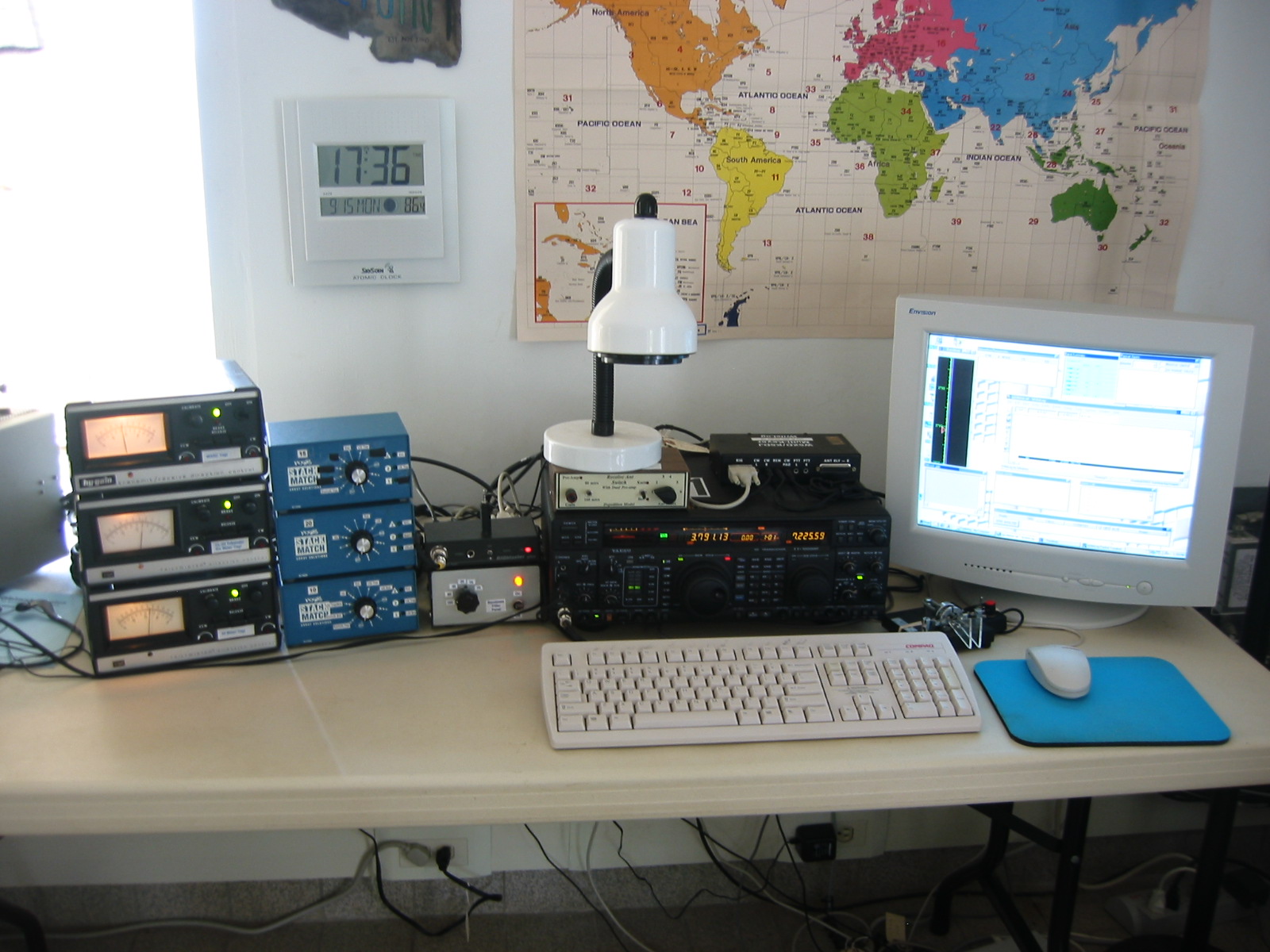

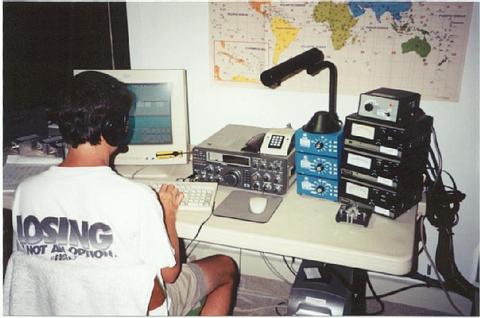

Station # 1, September 2003

Station # 2 (High Band Mults)

FT-1000 MP, Ten Tec Titan 2 Linear + outboard fan, Pentium 455 (on Ethernet) and flat screen monitor, Bencher paddle, automatically selected W3NQN bandpass filters, Radio Shack foot switch, LPT1 serial keying adapter, K9AY pushbutton selector for RX antennas. Both Beverages are available as well as two optional flags.

This station is configured to give the operator access to nearly all high band antennas when they are not in use at the run station. 40 yagi is also available.

The Station # 2 operator has the added dividend of a direct picture window view out across the Caribbean.

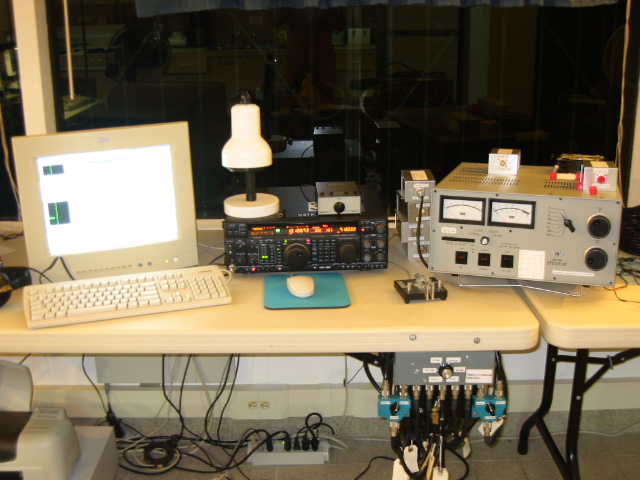

Station # 2, September 2003

Station # 3 (Low Band Mults)



Omni VI with all mods, Cary LK-800 linear, Pentium 1GB (on Ethernet) and 17 inch flat screen monitor, Bencher paddle, manually switchable W3NQN bandpass filters, MODEM connected phone line, Autek WM 1SWR meter, Heil foot switch, Heil boomset. Both Beverages are available as well as two optional flags.

Specializing on the low bands, this station can switch in all of the low band antennas, and some high band antenna access is also available at this station.

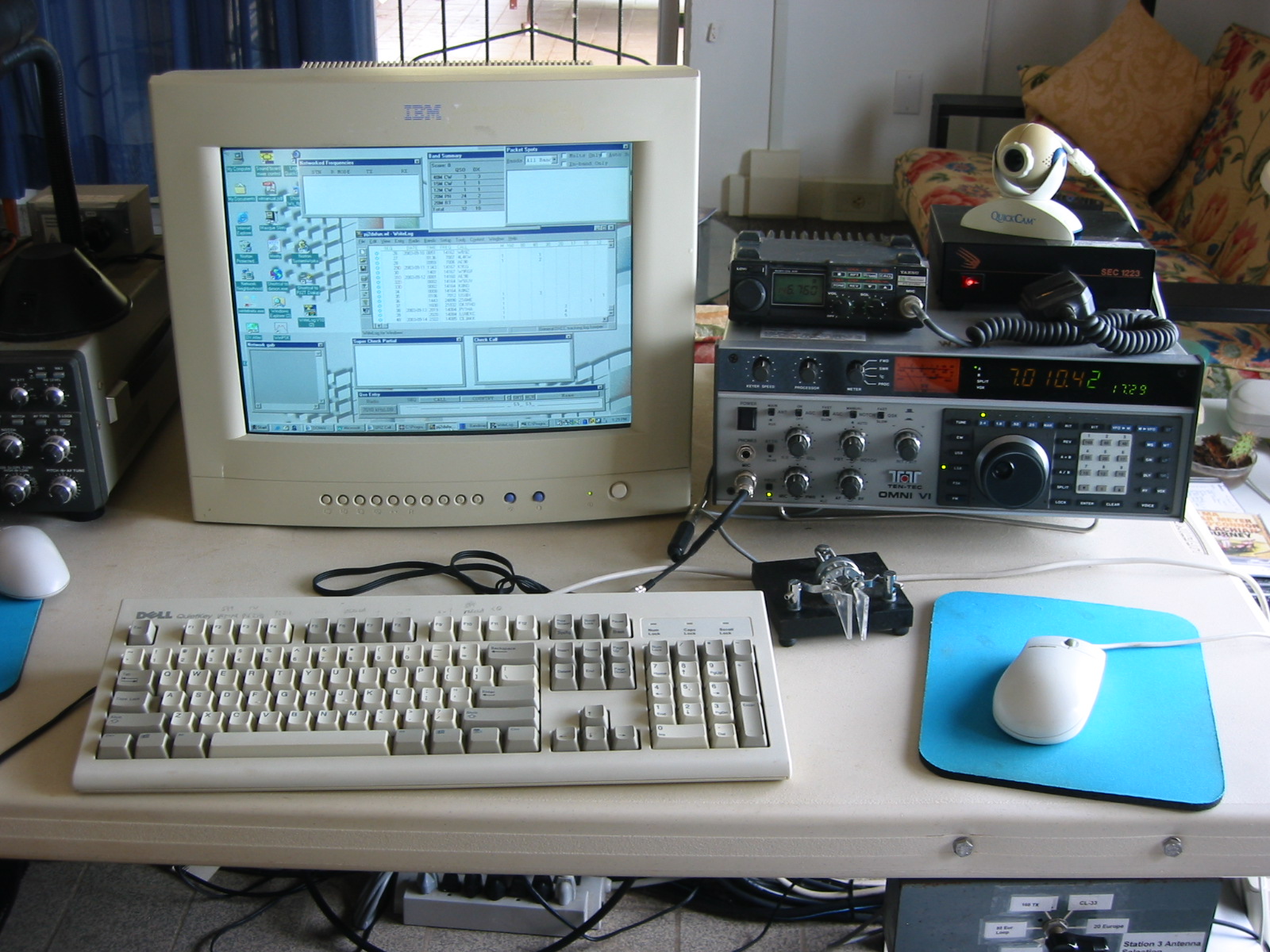

Station # 3, September 2003

Station # 4 (Miscellaneous Mults and Six Meters)



IC-765, Titan 425, Pentium PC (on Ethernet), Autek wattmeter, Bencher paddle, foot switch.

This station has access to nearly all transmit antennas. Both Beverages are available as well as two optional flags.

A six meter transceiver (FT-100) is also located at Station # 4.

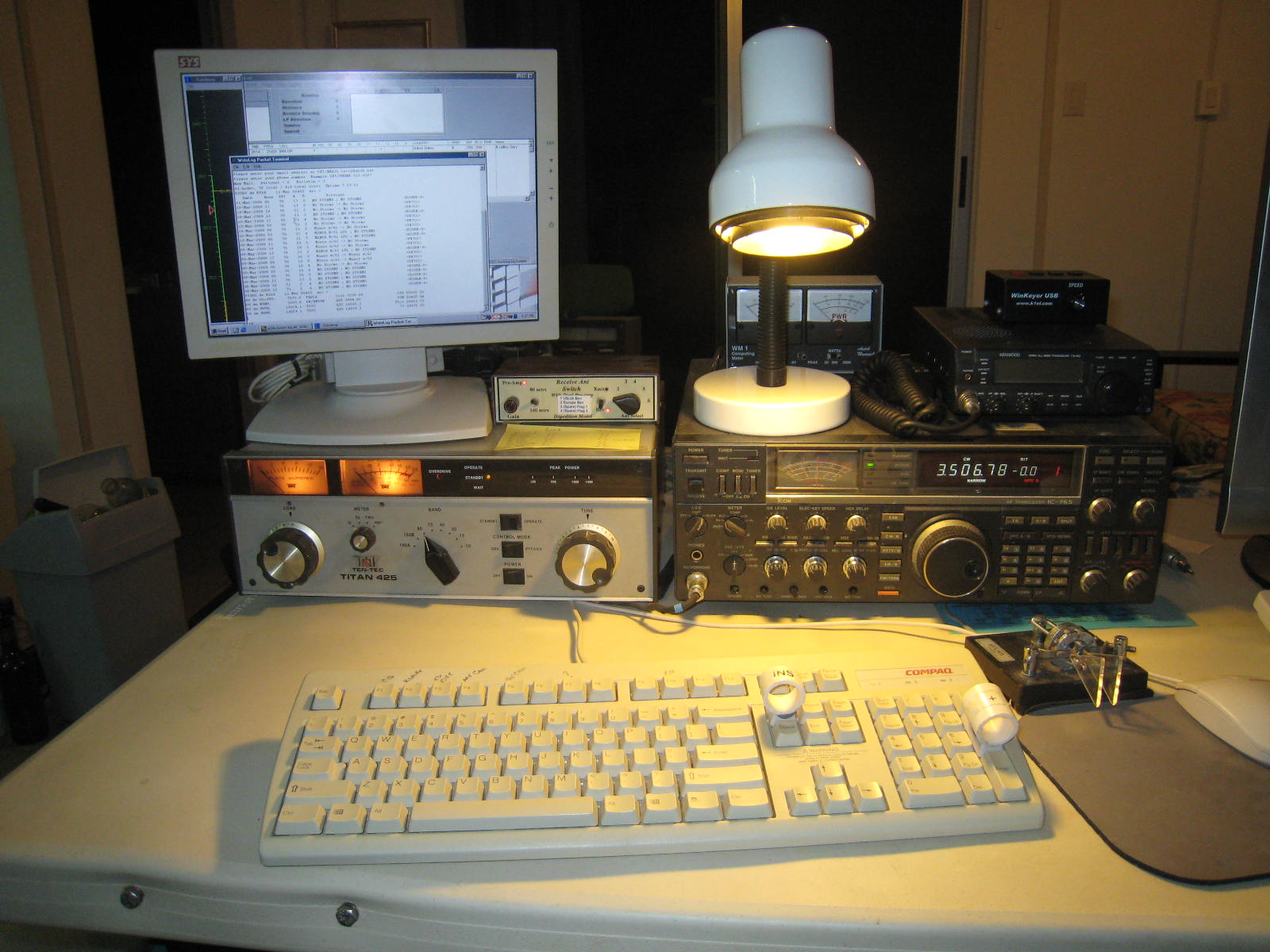

Station # 4, March 2008

Other Stations

110 and 220 volt power and access to the Ethernet network are readily available to add two more stations for a multi-multi configuration. These would be located on the food table, in the bedrooms, or on the outdoor covered porches.



Antenna Switching

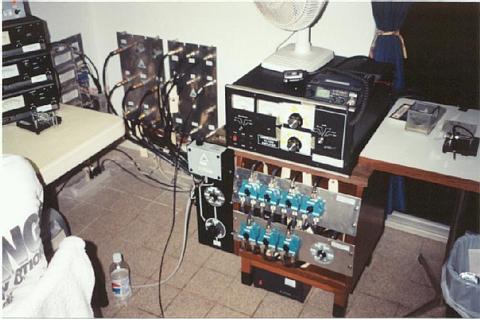

The station is set up so that the four stations can access the many antennas with high flexibility. Antenna switching at Station # 1 is largely automatic (except for the W3NQN filter panel) thanks to a Top-Ten devices band decoder. The coax entry bulkheads (click for better photo) and overall antenna switching panels are shown at the right. Pj2z10.jpg (32260 bytes)
