Notes on PC 31
28 February
2018
Does not boot, probably recoverable with USB thumb drive recovery set
which is missing. KB7Q
9 April 2011
Bought by W0CG and shipped to Idaho. Configured 12 April by W0CG with WL 10.85, Keyspan USB-COM port drivers, and Windows 7 Winkey drivers. Works fine networked with Vista laptop in Idaho prototyping. See here (and below) for the setup procedure. Will be transported to Curacao June 8 by K8LEE. Will be UPS shipped to K8LEE.

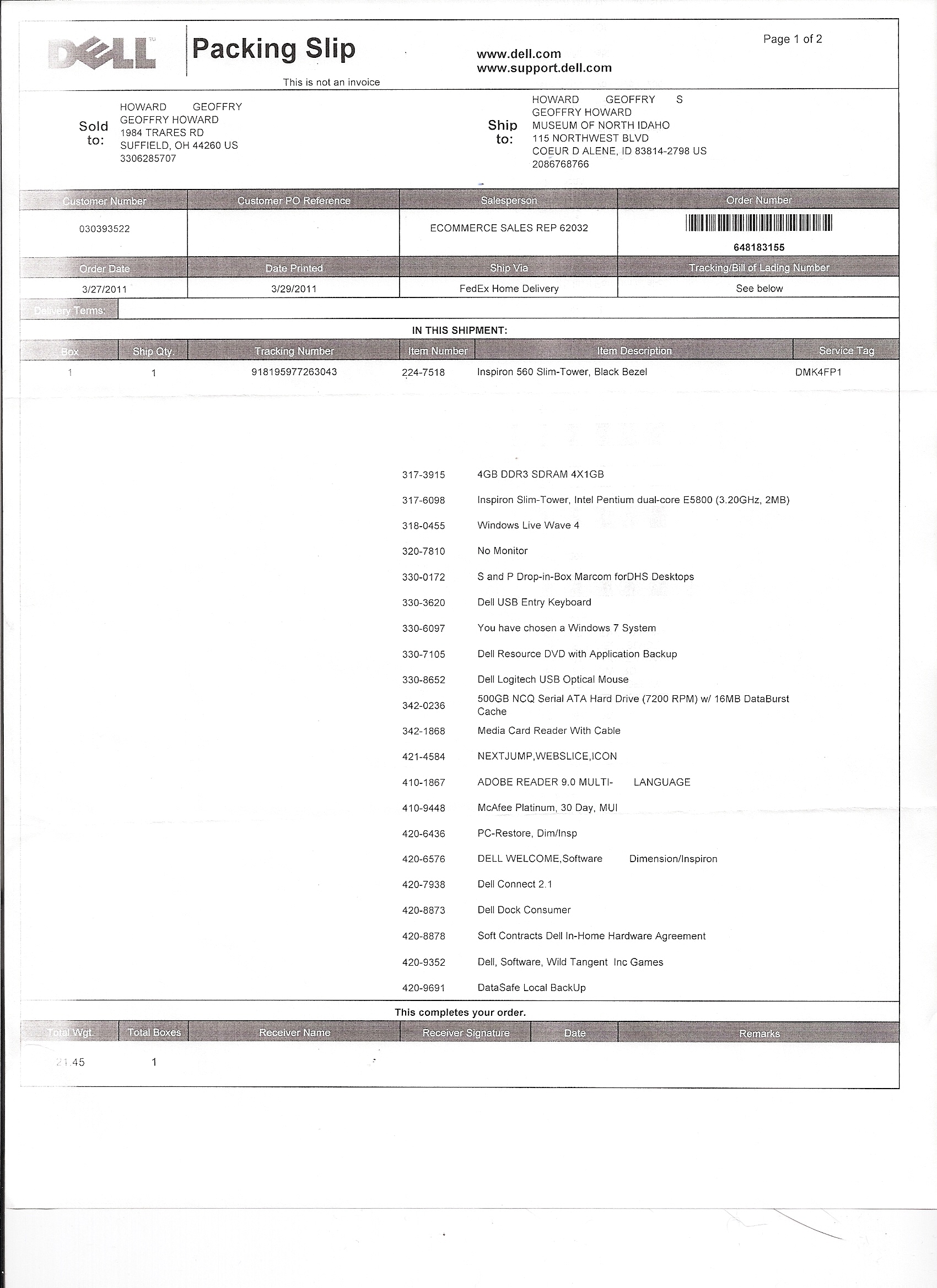

Dell data sheet 1, Dell data sheet 2. Click here for invoice.
Service Tag DMK4FP1. Express Service Code 29662225525. Microsoft Product Key 48762-BWDH8-28CY2-WTTF9-7DDFW.
Power Supply: Bestec TFX0250D5W +12 17A, +5 18A, +3.3 11A, -12 0.3A, +5 USB 2A; total 250 W.
Hard Drive: Seagate Barracuda 7200.12 500 GB, SN 9VMYD5R8
Battery: CR2032 Lithium 3V
Click here to see back of PC30 with LPT1 port. Interior photo of PC30.
Rig is on COM3, 4800 baud for FT-2000; Winkey is COM5.
---------------------------------------
Copy folders to C:/
WritelogV68Executables
WritelogV85UnzippedDistributionFiles
Writelog1069FullExecutables
WritelogV1080FulExecutables
Writelog Tips
Winkey
Install Writelog 10.80. Reg code is in Writelog Tips/writelog.directions at the bottom. It's necessary to explicitly install to C:/Writelog rather than take the defaults.
Explicitly create folder C:/Writelog/Contest
Install Writelog 10.85 or whatever is preferred.
Paste WL icon to desktop.
---------------------------------------
Create folder C:/KeyspanUSBAdapter
Copy from Keyspan CD Adobe documentation file into the above folder.
Do not plug in the Keyspan adapter. Start the install from the "Windows Drivers" section of the CD. Bypass (Close) the automatic get of the driver from Windows Update and allow install to complete.
Plug in Keyspan adapter.
Run "Keyspan Serial Assistant" from the Start Menu and note which COM port was assigned.
---------------------------------------
Plug in Winkeyer.
If driver install starts automatically, browse to drivers in C:/Winkey/CDM20814_WHQL_Certified. Or get it from http://www.ftdichip.com/Drivers/D2XX,htm and get the 64 bit 2.08.12 file.
Otherwise
Start, Control Panel, View Devices and Printers, USB<-> Serial, Properties, Hardware, Update Driver and browse to C:/Winkey/CDM20814_WHQL_Certified and then determine the correct port assignment afterward.
---------------------------------------
Control Panel, Hardware, Power Options, High Performance.
Define power buttons, when I press the power button, Do nothing.
Change when the computer sleeps, Put the computer to sleep, Never.
---------------------------------------
Copy PJ2T Wallpaper to C:/.
---------------------------------------
From top dock, install OfficeStarter 2010. It's just Word and Excel, stripped down.
---------------------------------------
Control Panel, System, See the name of this computer, Change Settings PC30. Reboot.
---------------------------------------
C:/Writelog, Properties, Sharing, Share then Advanced Sharing, Permissions, Add Everyone, Full Control
---------------------------------------
Control Panel, User Accounts, User Accounts, Manage accounts, Change an account. Create password of user PJ2T (who is the administrator account) to "PJ2T" and set hint to "Our station callsign".
---------------------------------------
www.supercheckpartial.com Download to C:/Writelog/Programs
---------------------------------------
Download PowerPoint viewer and install.
9 July 2011
Installed DX Atlas.
19 October 2011
Transported to Curacao by W0CG and installed at Station 2, with new Webcam.
15 December 2011
K8ND updated .INI file. Click here
31 March 2013
Failed during WPX SSB Sunday afternoon. Reseated memory and cycled all plugs and it worked OK April 1.
September 2013
W9NJY worked on it in September and declared it dead, parts only.
17 November 2013
N0YY was able to get signs of life, but front panel has orange light and fans will not come on. We will research further.
27 October 2016
Same problem - get orange light but nothing comes on. Sounds like power supply problem.
8 December 2016
Same as above. There is some good troubleshooting guidance online -- we should try this when time permits. Meanwhile this is a parts computer.
